Log GrabKLG2-M • KLG1-M • KLG1-MC

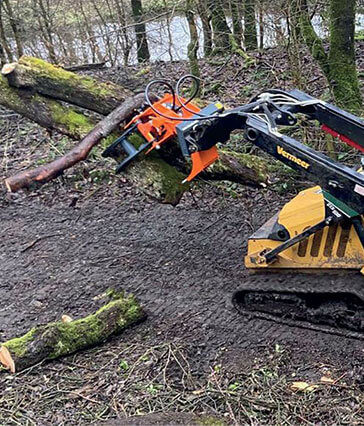

The KLG1-MC, KLG1-M and KLG2-M are professional log grabs, robustly constructed for use with mini skid steers and mini articulated loaders. The simple but extremely strong design ensures high reliability by minimising the number of moving parts. It is useful for a range of tasks including:

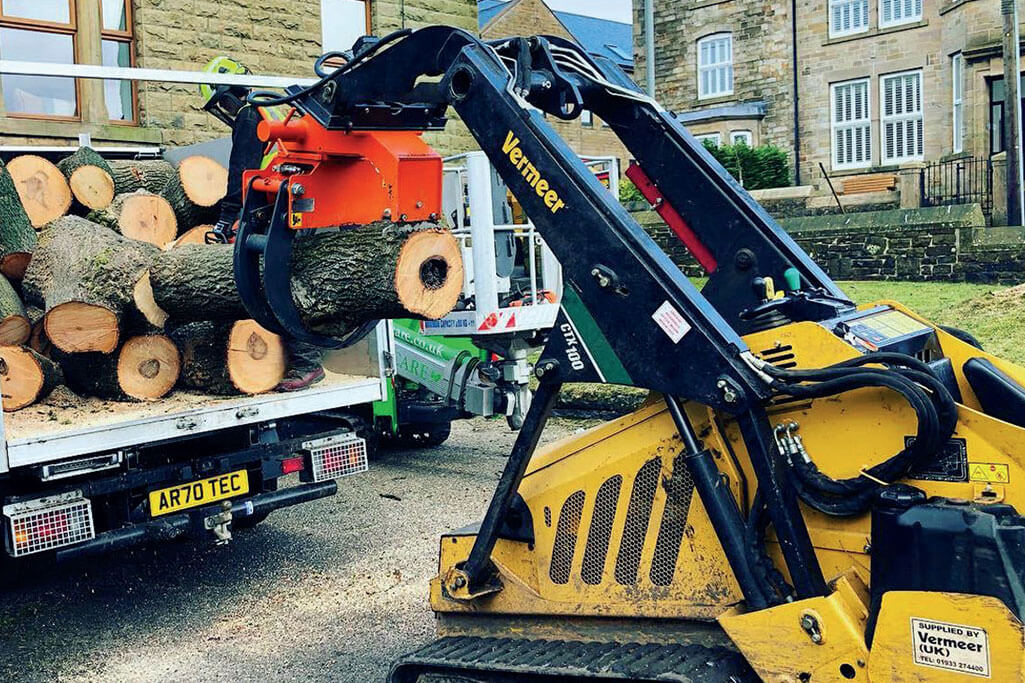

- Handling of large logs

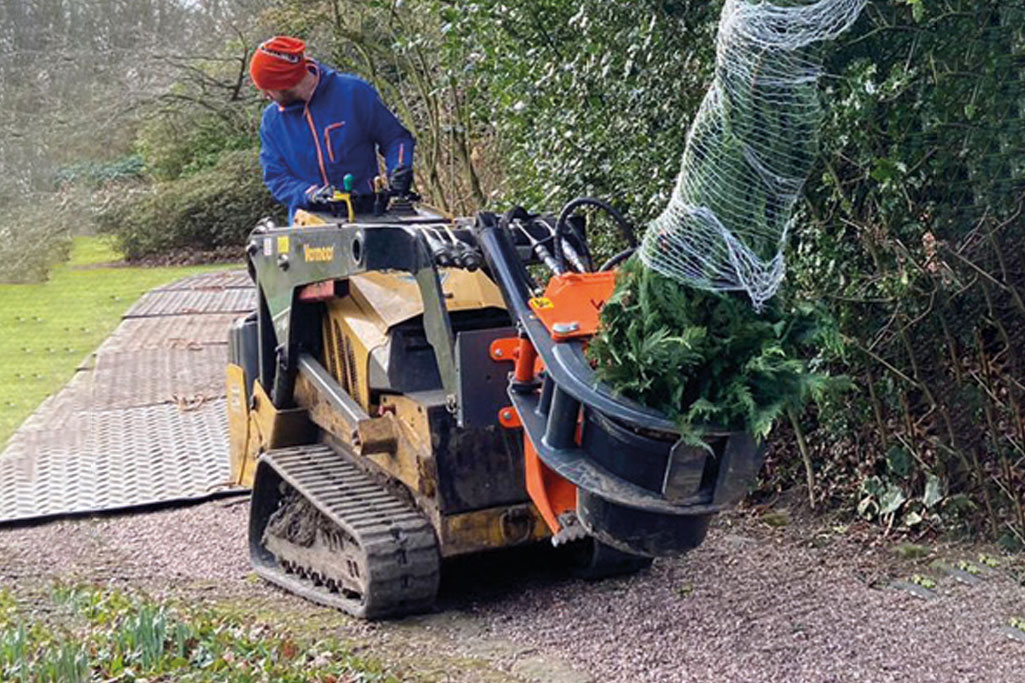

- Loading of brush into woodchippers

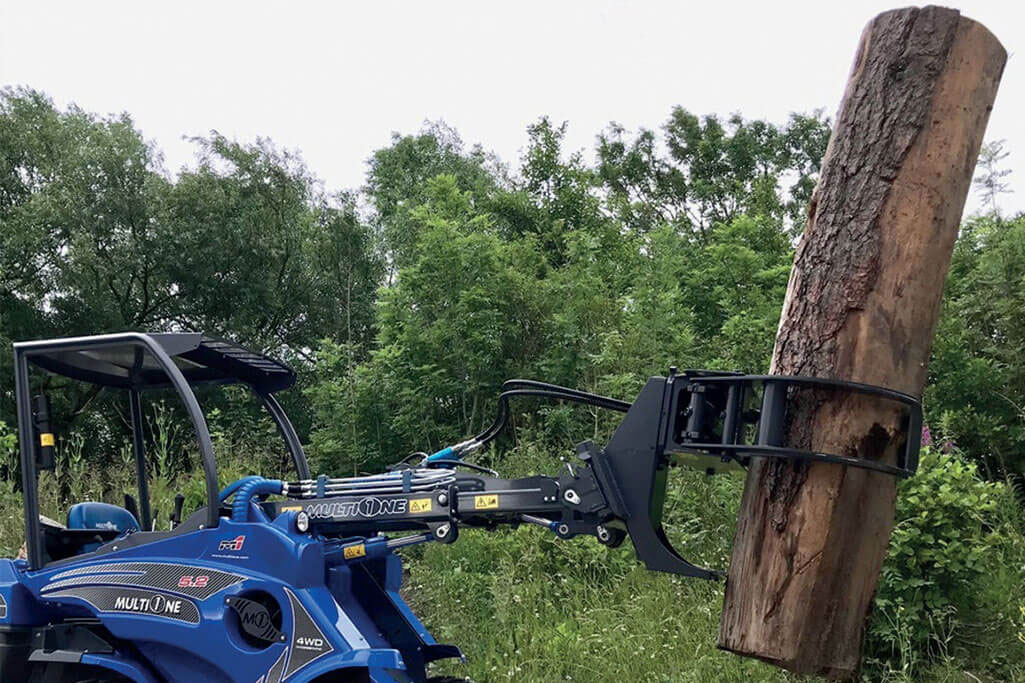

- Handling of posts, telegraph poles and stakes
The high gripping power of the grab, combined with the rigid mounting system, prevents the load from swinging during transit, maximising operator control and safety.

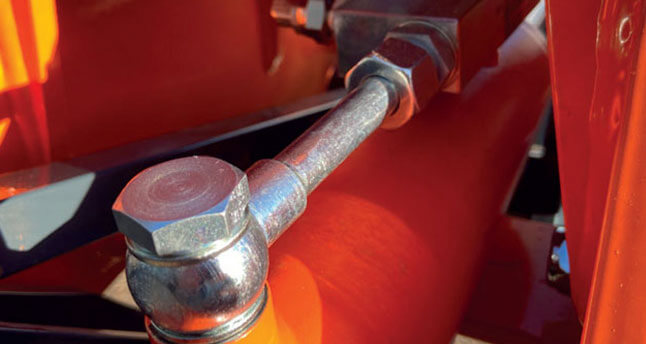

The large-bore ram maximises crushing power, and the pilot-operated check valve prevents the grab from opening without operator input, ensuring load retention

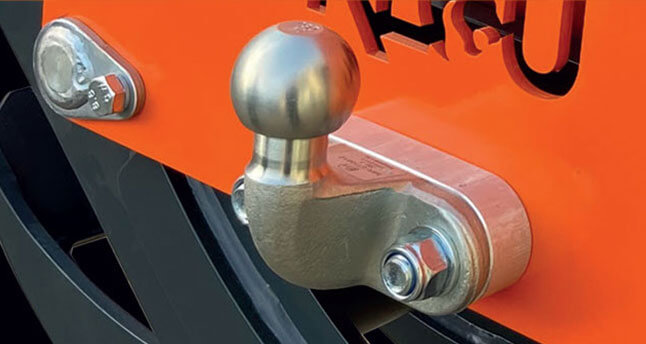

The optional front-mounted tow-ball permits easy movement of trailers and trailed plant, without the need to change attachment

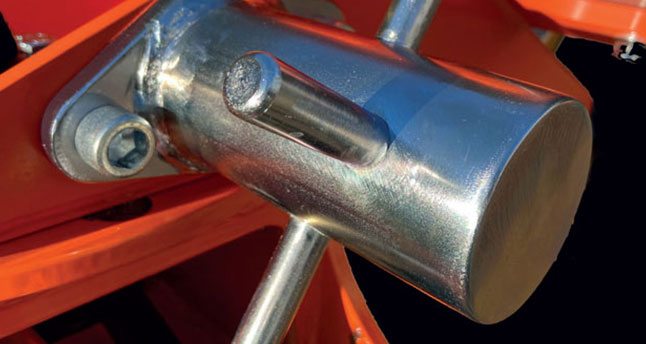

The optional side-mounted capstan is a useful tie-point for ropes when dragging brush from hard-to-access areas.
The rear brace spreads forces evenly throughout the grab and carrier vehicle, and helps to prevent the load from shifting
The hydraulic pipes are spiral-wrapped and routed through the centre of the grab, protecting them from scuff wear and catching on branches

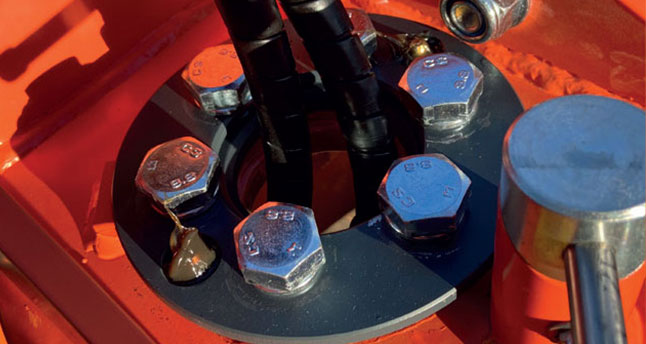

The immensely strong rigid swivel system (never known to break) prevents the load from swinging while in transit, maximising operator control and safety – particularly in confined spaces

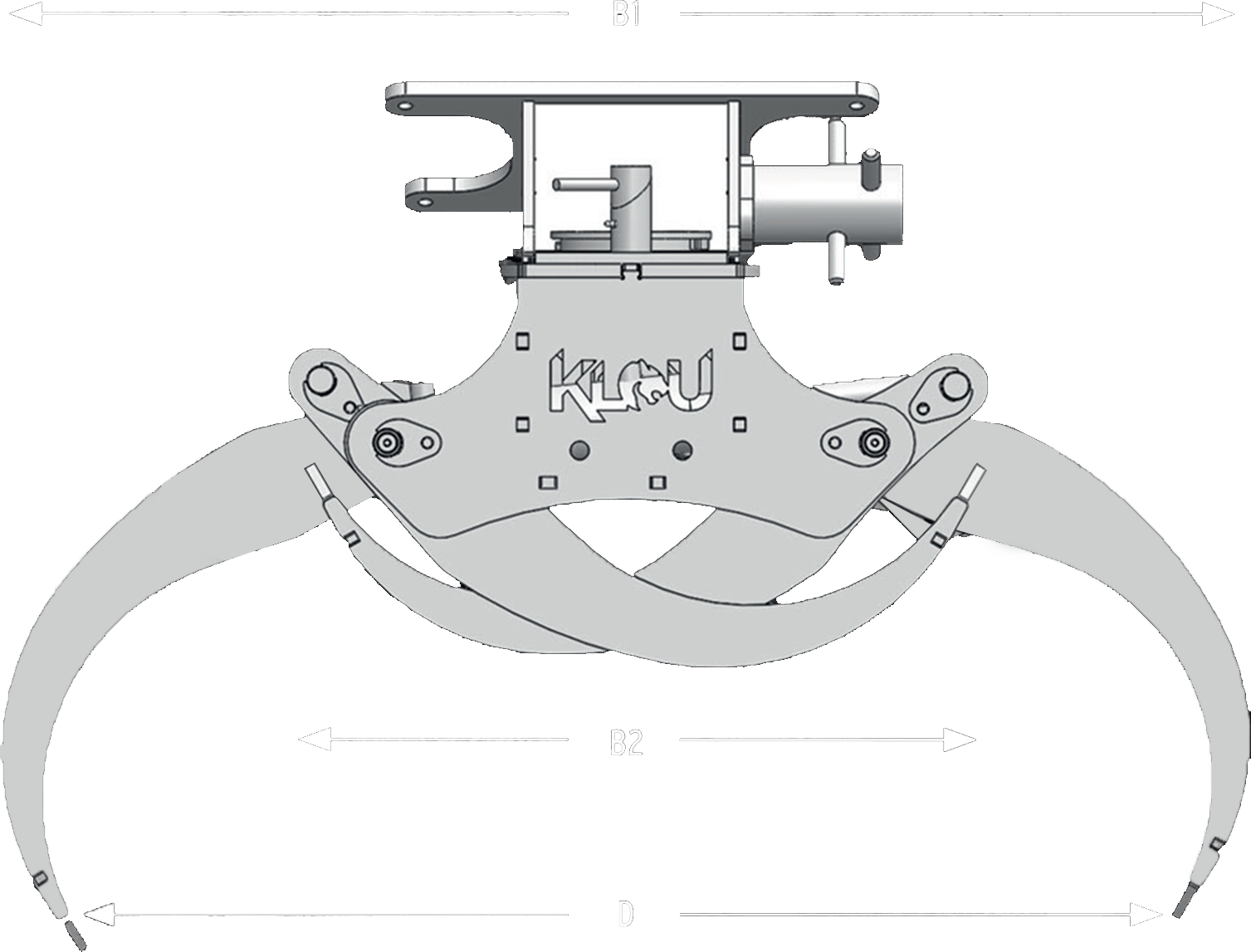

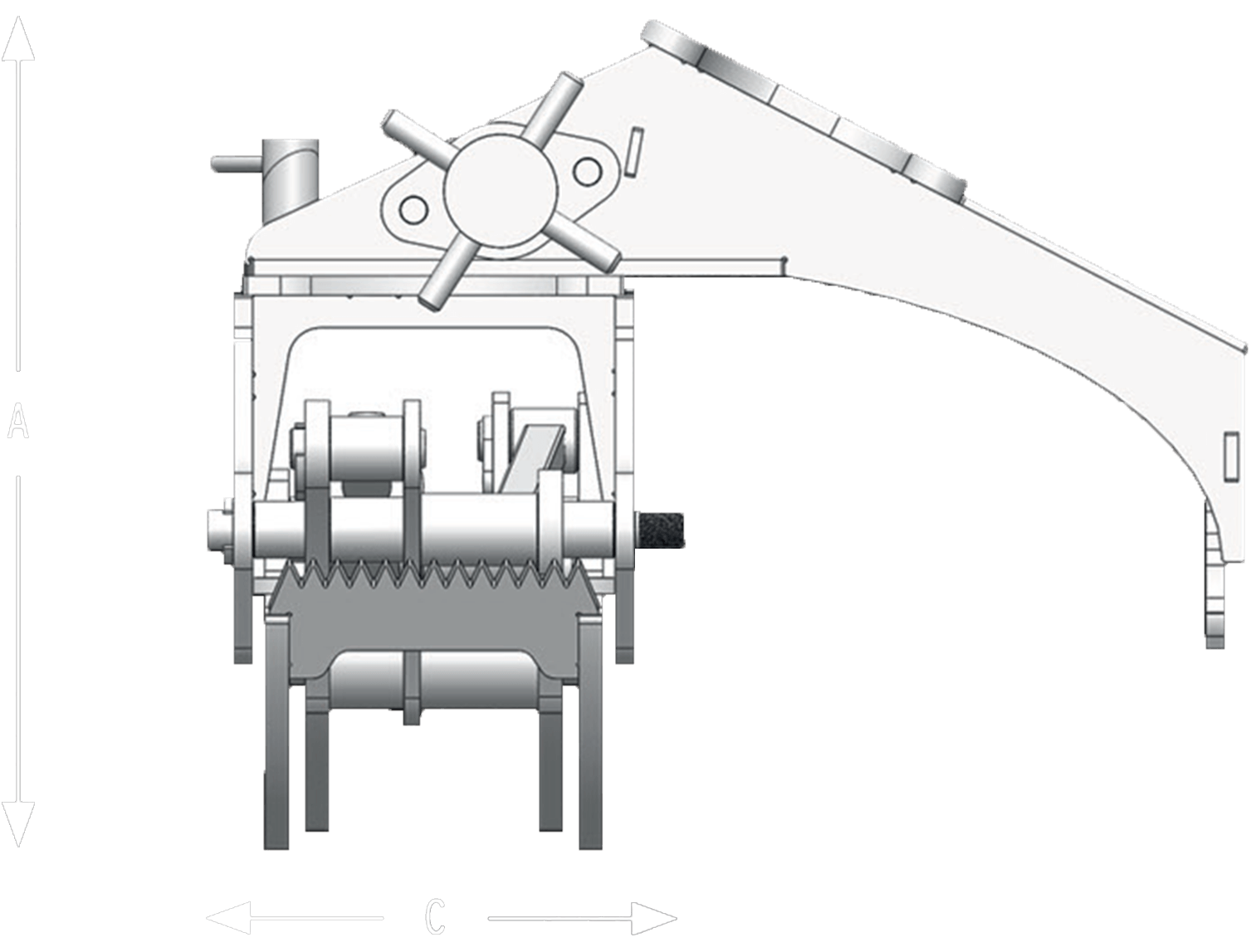

|Dimensions (exc tool grip, capstan, tow-ball)||KLG2-M||KLG1-M||KLG1-MC|
|A - Overall height (mm)||730||520||505|
|B1 - Overall width - open (mm)||1370||1105||1105|
|B2 - Overall width - closed (mm)||800||625||625|
|C - Overall length (mm)||745||650||300|
|D - Max. open width (mm)||1160||945||945|
|E - Min. closed dia. (mm)||80||60||60|
|Max. log dia. (mm)||950||750||750|
|Overall weight (kg)||180||125||105|
|Hydraulic service requirements||KLG2-M||KLG1-M||KLG1-MC|
|Min/max flow (litres/min)||20/75||15/60||15/60|
|Min/max pressure (bar)||150/250||150/250||150/250|
|Case drain required?||No||No||No|
|Pressure free return line required||No||No||No|
Klou UK operates a policy of continuous development and improvement - all specifications are therefore subject to change without notice
Review of the Klou Log Grab
"I just wanted to say how happy I am with the log grab for my mini skid-steer. I’ve used various loader grapples previously, some of which impressed and others which did not, but the Klou grapple is head and shoulders above anything I have used before. Your grapple has been beasted for 2 weeks now and it is hands down the best designed and fabricated attachment I’ve used. I keep finding new ways to use it – I feel real thought has gone into it. Time will tell with build quality – these things go through a lot, but so far it’s been brilliant and looks and feels more like something I’d find on a timber crane on a forestry forwarder. The foresters have been impressed too – high praise indeed from those boys!"
Ben, Centaur Tree Services Ltd
Update - 3 years later - “Still going strong!”
